首頁金洛博客 UFQ252/22 XO系列最小尺寸的超低抖動晶體振蕩器

UFQ252/22 XO系列最小尺寸的超低抖動晶體振蕩器

來源：http://www.techzozo.com 作者：金洛鑫電子 2022年07月11

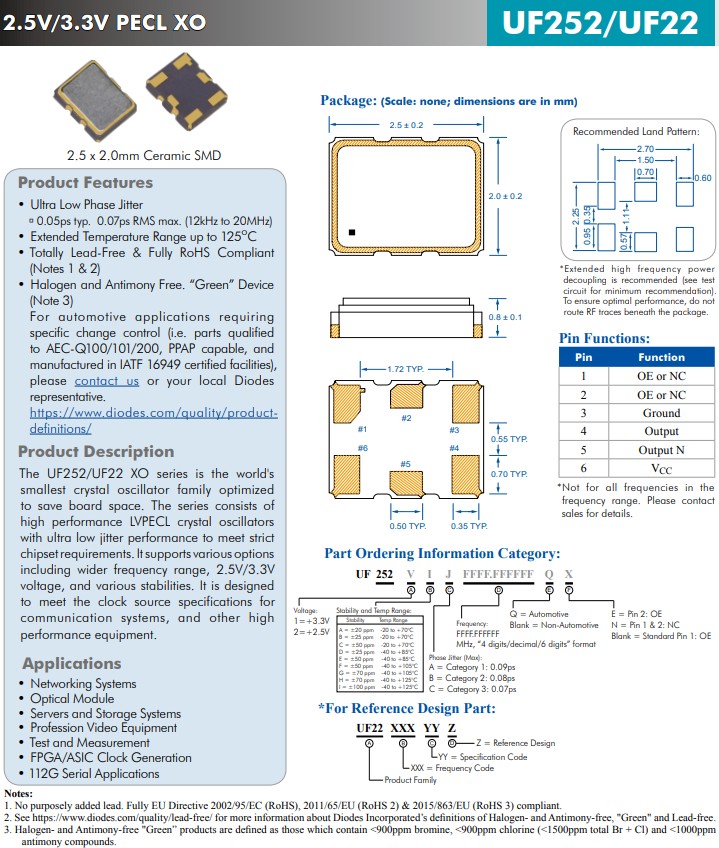

最小尺寸的超低抖動晶體振蕩器(XO)，百利通亞陶晶振UF252/UF22 XO 系列是世界上最小的石英晶體振蕩器系列，經過優化以節省電路板空間。該系列由具有超低抖動性能的高性能LVPECL晶體振蕩器組成，小體積尺寸2.5x2.0mm、超低抖動 LVPECL差分晶體振蕩器，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
特征：
超低相位抖動
0.05ps 典型值。0.07ps RMS 最大值。（12kHz至20MHz）
擴展溫度范圍高達125℃
完全無鉛且完全符合 RoHS 標準
不含鹵素和銻。“綠色”裝置
應用程序：網絡系統，光模塊，服務器和存儲系統，專業視頻設備，測試與測量，FPGA/ASIC 時鐘生成，112G串行應用
UFQ252/22 XO系列最小尺寸的超低抖動晶體振蕩器,UF2522AB150.000000QN,晶體振蕩器
FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV054 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 54MHz ±30ppm -20°C ~ 70°C
FNSURV054 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 54MHz ±30ppm -20°C ~ 70°C
FNSURV054 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 54MHz ±30ppm -20°C ~ 70°C
FDSAS6062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS6062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS6062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FN5000121 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -20°C ~ 70°C
FN5000121 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -20°C ~ 70°C
FN5000121 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -20°C ~ 70°C
FD2450017 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -40°C ~ 85°C
FD2450017 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -40°C ~ 85°C
FD2450017 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -40°C ~ 85°C
FN2500140 Diodes Incorporated SaRonix-eCera™ FN 25.000625MHz ±25ppm -40°C ~ 85°C
FN2500140 Diodes Incorporated SaRonix-eCera™ FN 25.000625MHz ±25ppm -40°C ~ 85°C
FN2500140 Diodes Incorporated SaRonix-eCera™ FN 25.000625MHz ±25ppm -40°C ~ 85°C
FN4800068 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±50ppm -20°C ~ 70°C
FN4800068 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±50ppm -20°C ~ 70°C
FN4800068 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±50ppm -20°C ~ 70°C
FN3330078 Diodes Incorporated SaRonix-eCera™ FN 33.333MHz ±30ppm -40°C ~ 85°C
FN3330078 Diodes Incorporated SaRonix-eCera™ FN 33.333MHz ±30ppm -40°C ~ 85°C
FN3330078 Diodes Incorporated SaRonix-eCera™ FN 33.333MHz ±30ppm -40°C ~ 85°C
FN0200045 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±50ppm -20°C ~ 70°C
FN0200045 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±50ppm -20°C ~ 70°C


FN0200045 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±50ppm -20°C ~ 70°C
NX51500001 Diodes Incorporated SaRonix-eCera™ NX 50MHz ±25ppm -40°C ~ 85°C
NX51500001 Diodes Incorporated SaRonix-eCera™ NX 50MHz ±25ppm -40°C ~ 85°C
NX51500001 Diodes Incorporated SaRonix-eCera™ NX 50MHz ±25ppm -40°C ~ 85°C
FK2400017 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±25ppm -40°C ~ 85°C
FK2400017 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±25ppm -40°C ~ 85°C
FK2400017 Diodes Incorporated SaRonix-eCera™ FK 24MHz ±25ppm -40°C ~ 85°C
FK2450016 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±25ppm -20°C ~ 70°C
FK2450016 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±25ppm -20°C ~ 70°C
FK2450016 Diodes Incorporated SaRonix-eCera™ FK 24.576MHz ±25ppm -20°C ~ 70°C
FK2500025 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±25ppm -40°C ~ 85°C
FK2500025 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±25ppm -40°C ~ 85°C
FK2500025 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±25ppm -40°C ~ 85°C
FK2500067 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 105°C
FK2500067 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 105°C
FK2500067 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 105°C
FN5000138 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000138 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000138 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000145 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000145 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN5000145 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -40°C ~ 85°C
FN2500233Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500233Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500233Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
UFQ252/22 XO系列最小尺寸的超低抖動晶體振蕩器,UF2522AB150.000000QN,晶體振蕩器

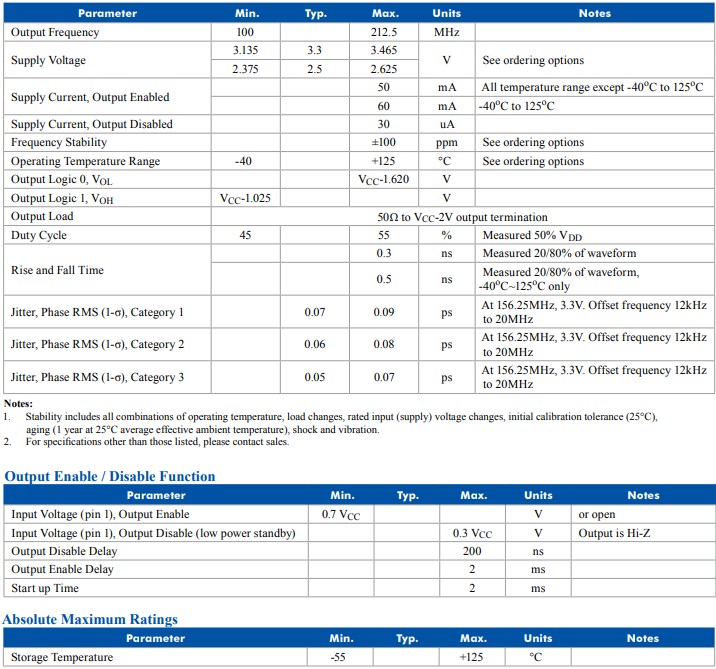

產品參數：
穩定性  20PPM到100PPM
包裝尺寸 2.5x2.0x0.8mm有源晶振
包裝類型 陶瓷縫
頻率范圍  100MHz至212.5MHz
抖動均方根  0.08ps至0.09ps
輸出邏輯 HCSL
電源電壓  3.3V, 2.5V
墊 6腳
產品系列 UFQ2
FN2500258Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500258Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500258Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500264Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500264Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500264Z Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN5000109 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±25ppm -20°C ~ 70°C
FN5000109 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±25ppm -20°C ~ 70°C
FN5000109 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±25ppm -20°C ~ 70°C
FN1200041Z Diodes Incorporated SaRonix-eCera™ FN 12MHz ±50ppm -40°C ~ 85°C
FN1200041Z Diodes Incorporated SaRonix-eCera™ FN 12MHz ±50ppm -40°C ~ 85°C
FN1200041Z Diodes Incorporated SaRonix-eCera™ FN 12MHz ±50ppm -40°C ~ 85°C
NX7125003Z Diodes Incorporated SaRonix-eCera™ NX 25MHz ±50ppm -20°C ~ 70°C
NX7125003Z Diodes Incorporated SaRonix-eCera™ NX 25MHz ±50ppm -20°C ~ 70°C
NX7125003Z Diodes Incorporated SaRonix-eCera™ NX 25MHz ±50ppm -20°C ~ 70°C
FK1220016Z Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm -40°C ~ 85°C
FK1220016Z Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm -40°C ~ 85°C
FK1220016Z Diodes Incorporated SaRonix-eCera™ FK 12.288MHz ±50ppm -40°C ~ 85°C
NX7011D0074.250000 Diodes Incorporated SaRonix-eCera™ NX 74.25MHz ±25ppm -40°C ~ 85°C
NX7011D0074.250000 Diodes Incorporated SaRonix-eCera™ NX 74.25MHz ±25ppm -40°C ~ 85°C
NX7011D0074.250000 Diodes Incorporated SaRonix-eCera™ NX 74.25MHz ±25ppm -40°C ~ 85°C
FNDDR1133 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 133.33MHz ±50ppm -20°C ~ 70°C
FNDDR1133 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 133.33MHz ±50ppm -20°C ~ 70°C
FNDDR1133 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 133.33MHz ±50ppm -20°C ~ 70°C
FJ2500009 Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -40°C ~ 85°C
DIODES UF系列超低 抖動，微型晶體振蕩器是 用于高性能計算和網絡的前沿 要求最苛刻的行業 高級應用。Automotivecompliant變體可用。 這種新型晶體振蕩器 支持廣泛的應用 要求非常低的噪音 采用最小的工業標準封裝之一。較大的包裝 也可滿足靈活 設計需求。 有多種輸出標準可供選擇: LVPECL，LVDS和HCSL，以及2.5V和3.3V的電源電壓， 提供客戶指定的頻率 高達212.5MHz，溫度 穩定性達到25PPM。
UFQ252/22 XO系列最小尺寸的超低抖動晶體振蕩器,UF2522AB150.000000QN,晶體振蕩器
FJ2500009 Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -40°C ~ 85°C
FJ2500009 Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -40°C ~ 85°C
NX7011D0074.175824 Diodes Incorporated SaRonix-eCera™ NX 74.175824MHz ±25ppm -40°C ~ 85°C
NX7011D0074.175824 Diodes Incorporated SaRonix-eCera™ NX 74.175824MHz ±25ppm -40°C ~ 85°C
NX7011D0074.175824 Diodes Incorporated SaRonix-eCera™ NX 74.175824MHz ±25ppm -40°C ~ 85°C
FJ2500036Z Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -20°C ~ 70°C
FJ2500036Z Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -20°C ~ 70°C
FJ2500036Z Diodes Incorporated SaRonix-eCera™ FJ 25MHz ±25ppm -20°C ~ 70°C
HX7011C0050.000000 Diodes Incorporated SaRonix-eCera™ HX 50MHz ±25ppm -40°C ~ 105°C
HX7011C0050.000000 Diodes Incorporated SaRonix-eCera™ HX 50MHz ±25ppm -40°C ~ 105°C
HX7011C0050.000000 Diodes Incorporated SaRonix-eCera™ HX 50MHz ±25ppm -40°C ~ 105°C
SHA000001 Diodes Incorporated SaRonix-eCera™ SH 100MHz ±50ppm -40°C ~ 85°C
SHA000001 Diodes Incorporated SaRonix-eCera™ SH 100MHz ±50ppm -40°C ~ 85°C
SHA000001 Diodes Incorporated SaRonix-eCera™ SH 100MHz ±50ppm -40°C ~ 85°C
HX7013D0100.000000 Diodes Incorporated SaRonix-eCera™ HX 100MHz ±50ppm -40°C ~ 90°C
HX7013D0100.000000 Diodes Incorporated SaRonix-eCera™ HX 100MHz ±50ppm -40°C ~ 90°C
HX7013D0100.000000 Diodes Incorporated SaRonix-eCera™ HX 100MHz ±50ppm -40°C ~ 90°C
FN3300073 Diodes Incorporated SaRonix-eCera™ FN 33MHz ±50ppm -40°C ~ 85°C
NX7021D0148.351648 Diodes Incorporated SaRonix-eCera™ NX 148.351648MHz ±25ppm -40°C ~ 85°C
NX7021D0148.351648 Diodes Incorporated SaRonix-eCera™ NX 148.351648MHz ±25ppm -40°C ~ 85°C
NX7021D0148.351648 Diodes Incorporated SaRonix-eCera™ NX 148.351648MHz ±25ppm -40°C ~ 85°C
NX7031D0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±25ppm -40°C ~ 85°C
NX7031D0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±25ppm -40°C ~ 85°C
NX7031D0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±25ppm -40°C ~ 85°C
NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm -40°C ~ 85°C
DIODES優勢：
UF系列為高速提供超低抖動為高性能應用提供盡可能小的封裝。
UF系列XO超低均方根抖動(典型值低至50fs)
超過苛刻應用的要求，并且提供廣泛的設計余量
貼片晶振2.5毫米x2.0mm毫米大小的包裝:
優化電路板空間以支持微型系統設計
寬溫度范圍(-40°C至125°C)
符合汽車行業標準(符合AEC-Q104)的版本
支持在惡劣環境中運行的加固設備設計
UFQ252/22 XO系列最小尺寸的超低抖動晶體振蕩器,UF2522AB150.000000QN,晶體振蕩器
