首頁金洛博客 UFQ322/32系列超低抖動LVPECL晶體振蕩器

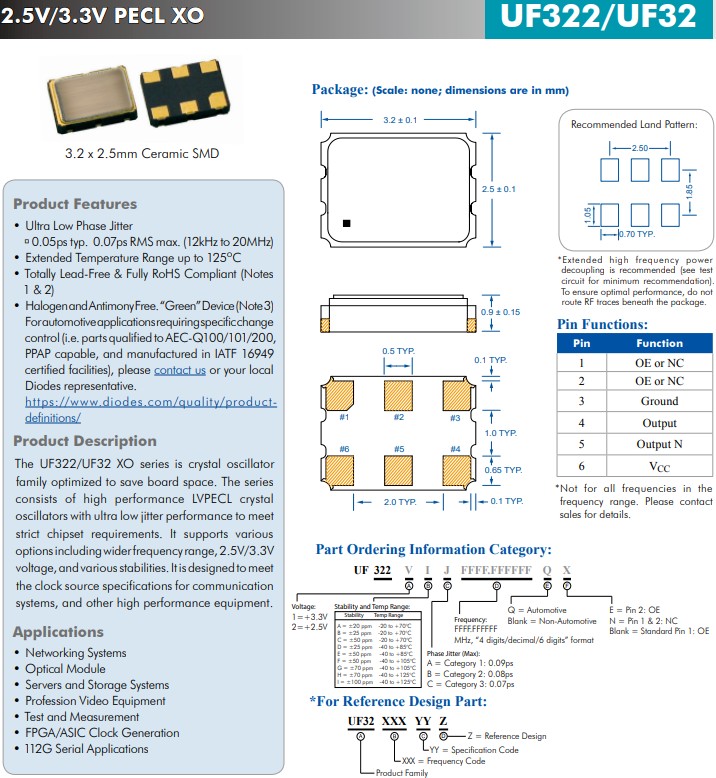

UFQ322/32系列超低抖動LVPECL晶體振蕩器

來源：http://www.techzozo.com 作者：金洛鑫電子 2022年07月11
亞陶晶振UF322/UF32 XO系列是經過優化的晶體振蕩器系列，可節省電路板空間。UFQ322/32系列，小體積尺寸3.2x2.5mm、超低抖動LVPECL晶體振蕩器該系列由具有超低抖動性能的高性能LVPECL差分晶體振蕩器組成，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
特征：
超低相位抖動
0.05ps 典型值。0.07ps RMS最大值。（12kHz至20MHz）
擴展溫度范圍高達 125oC
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序：網絡系統，光模塊，服務器和存儲系統，專業視頻設備，測試與測量，FPGA/ASIC 時鐘生成，112G 串行應用
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm
NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm
NX7021D0622.080000 Diodes Incorporated SaRonix-eCera™ NX 622.08MHz ±25ppm
NX7031D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm
NX7031D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm
NX7031D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm
WF7021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF7021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF7021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF9021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF9021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
WF9021B0622.080000 Diodes Incorporated SaRonix-eCera™ WF 622.08MHz ±5ppm
KD3270040 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270040 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270040 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270046Z Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KD3270046Z Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KD3270046Z Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
JX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ JX 56MHz ±50ppm
JX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ JX 56MHz ±50ppm
JX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ JX 56MHz ±50ppm
KK3270050 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
KK3270050 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
KK3270050 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm
JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb
JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb


JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb
FRBST1061 Diodes Incorporated SaRonix-eCera™ FR 61.44MHz ±50ppm
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm
KM3270004 Diodes Incorporated SaRonix-eCera™ KM 32.768kHz ±25ppm
FK2500021 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FN4000159 Diodes Incorporated SaRonix-eCera™ FN 40MHz ±50ppm
FK0800003 Diodes Incorporated SaRonix-eCera™ FK 8MHz ±50ppm
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm
FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm
FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm
FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm
FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm
FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm
FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm

Product Parameters

Subfamily Ultra Low Jitter XO
Product Series UFQ3
Compliance(Only Automotive supports PPAP) Automotive
Freq Range (MHz) 100 to 212.5
Jitter RMS (ps) 0.07 to 0.09
Stability (PPM) 20 to 100
Package Size (mm) 3.2 x 2.5 x 0.9
PkgType Ceramic Seam
Output Logic LVPECL
Supply Voltage (V) 3.3, 2.5
Pads 6
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
產品參數：
亞科 超低抖動 XO
產品系列 UFQ3
合規性（僅汽車支持PPAP）汽車
頻率范圍  100MHz至212.5MHz
抖動均方根 (ps) 0.07至0.09
穩定性 (PPM) 20到100
包裝尺寸 3.2x2.5x0.9mm貼片晶振
包裝類型 陶瓷縫
輸出邏輯 LVPECL
電源電壓  3.3V, 2.5V
墊 6腳
FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm
FNSAS2075 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 75MHz ±50ppm
FD6250012 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±50ppm
KN3270028 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KD3270032 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KN3270031 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KD3270042 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KN3270022 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KD3270036 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KN3270032 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KN3270033 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
KD3270034 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm
KX3211B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3211C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX3211E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX3211G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3213B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3213C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX3213G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX3211H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KD3270043 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KN3270026 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KN3270034 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KD3270012 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KK3270040 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
我們的汽車兼容晶體振蕩器 (XO) 旨在滿足汽車應用的嚴格要求，并在其部件號中以“Q”區分。它們是在經過嚴格 IATF 16949 標準認證的設施中制造的，并且能夠根據 VDA6.3 進行客戶審核。這些零件均受 PPAP（生產零件批準流程）文檔支持，從而滿足汽車電子行業的所有要求。
此外，所有符合汽車標準的石英晶體振蕩器 (XO) 均已使用 AECQ-200 和 QAP-81 進行了認證，以涵蓋石英諧振器和 XO IC，而不是使用 AEC-Q100（僅針對 IC 定義）。我們計劃在 2021 年開始為我們新的符合汽車標準的 XO 產品逐步采用 AECQ-104 認證標準，但它不會將之前符合 AECQ-200 + QAP-81 的產品重新認證為 AEC-Q104（AECQ- 200 + QAP-81 資格標準和 AECQ-0104 資格標準是測試數量和添加 X 射線檢查）。
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
KK3270042 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
KK3270044 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm
KN3270027 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
KD3270033 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
KN3270030 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
KD3270039 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
KN3270023 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm
FNC500129 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm
KN3270036 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KN3270029 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KX2511B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2511C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2511E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2511H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2513C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2513E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm
KX2513H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KX2513B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm
KN3270025 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm
KX2513A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm
KD3270041 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm
KN3270024 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm
UFQ322/32系列超低抖動LVPECL晶體振蕩器,UF3221DA0212.500000,差分晶振,ECERA小體積晶振
UFQ252/22 20~100 2.5x2.0x0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LV-PECL差分晶振
UFQ253/23 20~100 2.5x2.0x0.8 LVDS 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動LVDS晶體振蕩器
UFQ254/24 20~100 2.5x2.0x0.8 HCSL 3.32.5 6 2.5V/3.3V、2.5x2.0mm、超低抖動HCLS晶體振蕩器
UFQ322/32 20~100 3.2x2.5x0.9 LVPECL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動LVPECL晶體振蕩器
UFQ323/33 20~100 3.2x2.5x0.9 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動LVPECL晶體振蕩器
UFQ324/34 20~100 3.2x2.5x0.9 HCSL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、超低抖動HCLS晶體振蕩器
UFQ502/52 20~100 5.0x3.2x1.2 LVPECL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動LVPECL晶體振蕩器
UFQ503/53 20~100 5.0x3.2x1.2 LVDS 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動LVDS晶體振蕩器
UFQ504/54 20~100 5.0x3.2x1.2 HCSL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、超低抖動HCLS晶體振蕩器
UFQ702/72 20~100 7.0x5.0x1.4 LVPECL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動LVPECL晶體振蕩器
UFQ703 / 73 20~100 7.0x5.0x1.4 LVDS 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動LVDS晶體振蕩器
UFQ704 / 74 20~100 7.0x5.0x1.4 HCSL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、超低抖動HCLS晶體振蕩器
