EPSON公司3225封裝LVDS差分晶振編碼清單

來源：http://www.techzozo.com 作者：金洛鑫電子 2018年12月06
  目前在晶振這個行業里，越小的尺寸越吃香，因為現在的產品大部分都比較小型，方便攜帶甚至是可折疊，石英晶振做為電子數碼，科技智能產品比較重要的電子元器件，對體積的要求是非常嚴格的。帶電壓有源的貼片晶振是現在比較熱門的，5032mm，3225mm和2520mm都是現在市場上比較常見的封裝，可廣泛應用到各行各業中去。差分晶振是現在振蕩器中比較高端的一種，因為生產難度大，工藝技術復雜，所以要研制出小體積并不容易，哪怕是愛普生晶振公司，如今成功量產的LVDS差分晶振尺寸較小的是3.2*2.5mm，型號是SG3225VAN晶振，現在我們來看看這個料號所有的原廠編碼及其代表的參數含義。
愛普生SG3225VAN晶振LVDS差分輸出系列原廠編碼：
原廠編碼 型號 頻率 封裝 輸出 工作溫度
X1G0042410001 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410002 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410004 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410005 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410006 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410007 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410008 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410009 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410010 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410011 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410012 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410014 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410015 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410016 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410017 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410020 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410021 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410023 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410024 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410025 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410026 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410027 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410028 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410029 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410030 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410031 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410033 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410034 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410035 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410036 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410039 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410040 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410042 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410043 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410044 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410045 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410046 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410047 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410048 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410049 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410050 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410052 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410053 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410054 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410055 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410058 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410059 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410061 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410062 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410063 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410064 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410065 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410066 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410067 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410068 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410069 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410071 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410072 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410073 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410074 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410079 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410080 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410083 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410084 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410087 SG3225VAN 50.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410088 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410092 SG3225VAN 68.750000 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410100 SG3225VAN 133.333333 MHz 3.20 x 2.50 x 1.20 mm LVDS -20 to 70 °C
X1G0042410101 SG3225VAN 148.350000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410102 SG3225VAN 114.285000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410103 SG3225VAN 250.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410104 SG3225VAN 350.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410105 SG3225VAN 80.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410106 SG3225VAN 98.304000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
X1G0042410108 SG3225VAN 297.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS -40 to 85 °C
  LVDS輸出是比較典型的差分晶振輸出方式，穩定性好，可靠性高，一直以來都是廣大客戶使用最多的一種差分輸出晶振，因為愛普生的品牌效應和好口碑，許多生產廠家在選購差分晶振時，都會選擇這顆SG3225VAN晶振，而且因為小巧的體積更受歡迎。

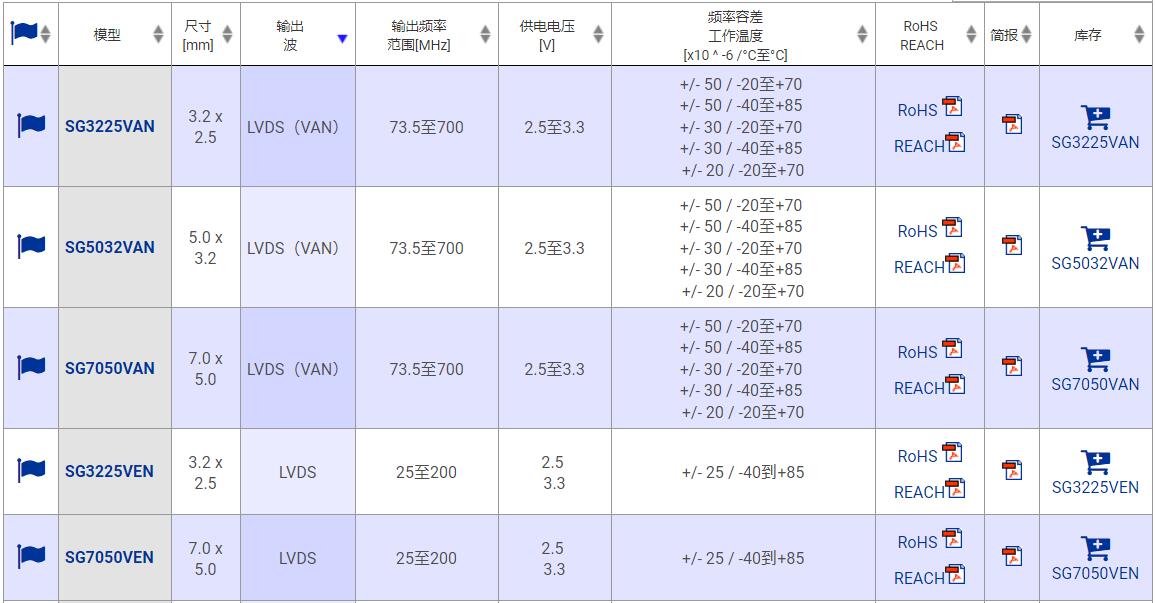

SG3225VAN差分晶振同系列型號表：
  愛普生晶振公司研發的LVDS晶振型號算是行業里比較多的，而且尺寸也比較小，工作溫度范圍有-20℃~+70℃和-40℃~+85℃兩種可選，除了3225mm的封裝之外，還有7050mm，5032mm，想知道更完整更詳細的愛普生差分晶振原廠編碼，可聯系金洛鑫電子提供，歡迎致電：0755-27837162！
