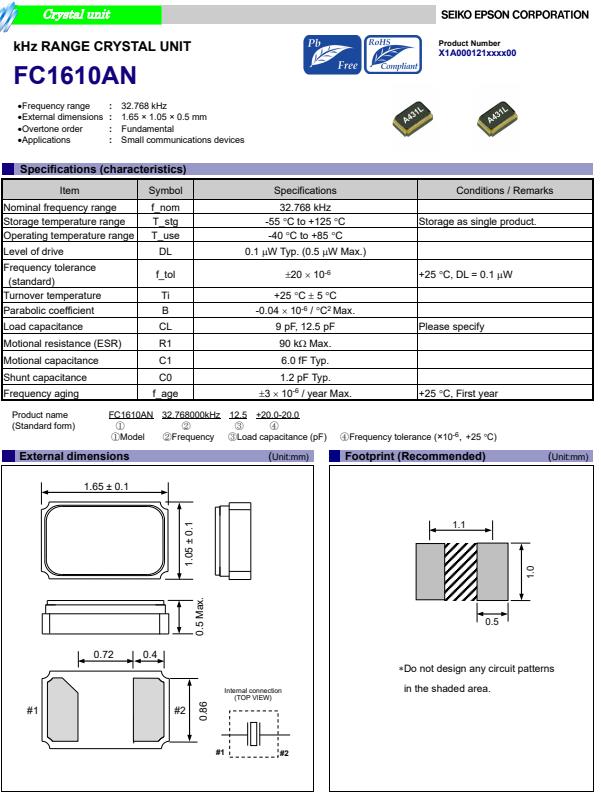

X1A000121001200創新輕薄型無源晶振是智能電表的甄選，愛普生是一家非常具有創新能力的企業，有著多元化的產品線，通過幾十年的專注，能夠保證所生產出來的產品質量保障，同時又能夠為用戶提供更多選擇空間，以及專業化的技術解答，秉持著對于進口晶振產品的極致追求，開發了FC1610AN晶振，編碼X1A000121001200，尺寸(LxWxH)1.65 x 1.05 x 0.5 mm，客戶負載capacitance12.5pF，頻率公差+ / - -10.0 ppm，工作溫度-40至+85°C，額外OptionsNo，F(xiàn)requency32.768000kHz，這是一款超小型的無源晶振，具有輕薄型小，低差損的特點。

X1A000121001200創新輕薄型無源晶振是智能電表的甄選，在無線通訊產品中一個無線通訊產品就要用到一顆晶振,最常見的通信設備上的時間顯示就要一款為32.768KHz無源時鐘貼片晶振,為了滿足市場需求,由愛普生晶振公司推出的一款FC1610AN無源基頻晶振,因基頻晶振穩定性更高，非常適用于通信設備、工業電子、汽車電子、消費電子行業，最典型的應用為時鐘和微機.

Product Number	LxWxH	Model	Frequency	CL Value	Freq.tol. @+25°C	Oper. Temper. range
X1A000091000100	3.2 x 1.5 x 0.9 mm	FC-13A	32.768kHz	12.5 pF	+/-20.0 ppm	-40 to +125 °C
X1A000091000200	3.2 x 1.5 x 0.9 mm	FC-13A	32.768kHz	12.5 pF	+/-50.0 ppm	-40 to +125 °C
X1A000091000300	3.2 x 1.5 x 0.9 mm	FC-13A	32.768kHz	9 pF	+/-50.0 ppm	-40 to +125 °C
X1A000091000500	3.2 x 1.5 x 0.9 mm	FC-13A	32.768kHz	9 pF	+/-20.0 ppm	-40 to +125 °C
X1A000121000500	1.65 x 1.05 x 0.5 mm	FC1610AN	32.768kHz	12.5 pF	+/-20.0 ppm	-40 to +85 °C
X1A000121000600	1.65 x 1.05 x 0.5 mm	FC1610AN	32.768kHz	9 pF	+/-20.0 ppm	-40 to +85 °C
X1A000121000700	1.65 x 1.05 x 0.5 mm	FC1610AN	32.768kHz	15 pF	+/-20.0 ppm	-40 to +85 °C
X1A000121000800	1.65 x 1.05 x 0.5 mm	FC1610AN	32.768kHz	7 pF	+/-20.0 ppm	-40 to +85 °C
X1A000121001100	1.65 x 1.05 x 0.5 mm	FC1610AN	32.768kHz	9 pF	+/-10.0 ppm	-40 to +85 °C
X1A000121001200	1.65 x 1.05 x 0.5 mm	FC1610AN	32.768kHz	12.5 pF	+/-10.0 ppm	-40 to +85 °C
X1A000121001300	1.65 x 1.05 x 0.5 mm	FC1610AN	32.768kHz	6 pF	+/-20.0 ppm	-40 to +85 °C
X1A000121001400	1.65 x 1.05 x 0.5 mm	FC1610AN	32.768kHz	7 pF	-10.0/+20.0 ppm	-40 to +85 °C
X1A000171000100	2.05 x 1.2 x 0.6 mm	FC2012AN	32.768kHz	12.5 pF	+/-20.0 ppm	-40 to +105 °C
X1A000171000200	2.05 x 1.2 x 0.6 mm	FC2012AN	32.768kHz	9 pF	+/-20.0 ppm	-40 to +105 °C
X1A000171000300	2.05 x 1.2 x 0.6 mm	FC2012AN	32.768kHz	7 pF	+/-20.0 ppm	-40 to +105 °C
X1A000021000200	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	10 pF	+/-20.0 ppm	-40 to +85 °C
X1A000021000700	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	10 pF	+/-20.0 ppm	-40 to +85 °C
X1A000021000800	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	10 pF	+/-20.0 ppm	-40 to +85 °C
X1A000021001000	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	9 pF	+/-20.0 ppm	-40 to +85 °C
X1A000021001100	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	10 pF	+/-20.0 ppm	-40 to +85 °C
X1A000021001600	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	7 pF	+/-20.0 ppm	-40 to +85 °C
X1A000061000200	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	12.5 pF	+/-20.0 ppm	-40 to +85 °C
X1A000061000300	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	12.5 pF	+/-30.0 ppm	-40 to +85 °C
X1A000061000600	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	7 pF	+/-20.0 ppm	-40 to +85 °C
X1A000061000800	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	9 pF	+/-20.0 ppm	-40 to +85 °C
X1A000061001400	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	12.5 pF	+/-10.0 ppm	-40 to +85 °C
X1A000061002100	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	6 pF	+/-20.0 ppm	-40 to +85 °C
X1A000061002400	2.05 x 1.2 x 0.6 mm	FC-12M	32.768K	9 pF	+/-10.0 ppm	-40 to +85 °C
X1A000061003000	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	8 pF	+/-20.0 ppm	-40 to +85 °C
X1A000061003200	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	6.6 pF	+/-20.0 ppm	-40 to +85 °C
X1A000061003500	2.05 x 1.2 x 0.6 mm	FC-12M	32.768kHz	7 pF	+/-10.0 ppm	-40 to +85 °C

愛普生公司秉持著積極向上樂觀的態度開展一切活動，通過自身不斷鉆研的精神，在晶體行業有著極其豐富的專業知識，以及擁有一流的服務團隊，能夠快速針對用戶的需求，設計提供獨特價值的產品,生產或制造的藝術和科學,我們積累了多年的專業知識,然后生產晶振,石英晶振,有源晶振,壓控振蕩器, 32.768K鐘表晶振,溫補晶振等出售給我們的客戶.
