首頁歐美晶振拉隆晶振AS-8.000-30-3030-SMD-TR,8.000MHz,Raltron晶振,30pf

    AS-8.000-30-3030-SMD-TR,8.000MHz,Raltron晶振,30pf

  • 規格型號：69235743
  • 頻率：8.000MHz
  • 尺寸：13.5×4.8mm
  • PDF
  • 產品描述：美國進口石英晶體,AS-8.000-30-3030-SMD-TR晶振,頻率8.000MHz,Raltron晶振,負載30pf,AS-SMD無源晶振,時鐘信號源晶振,儲存卡晶振,電腦顯示屏晶振,攝像頭晶振.


AS-8.000-30-3030-SMD-TR,8.000MHz,Raltron晶振,30pf,Raltron晶振,美國進口石英晶體,AS-8.000-30-3030-SMD-TR晶振,頻率8.000MHz,負載30pf,AS-SMD無源晶振,時鐘信號源晶振,儲存卡晶振,電腦顯示屏晶振,攝像頭晶振.

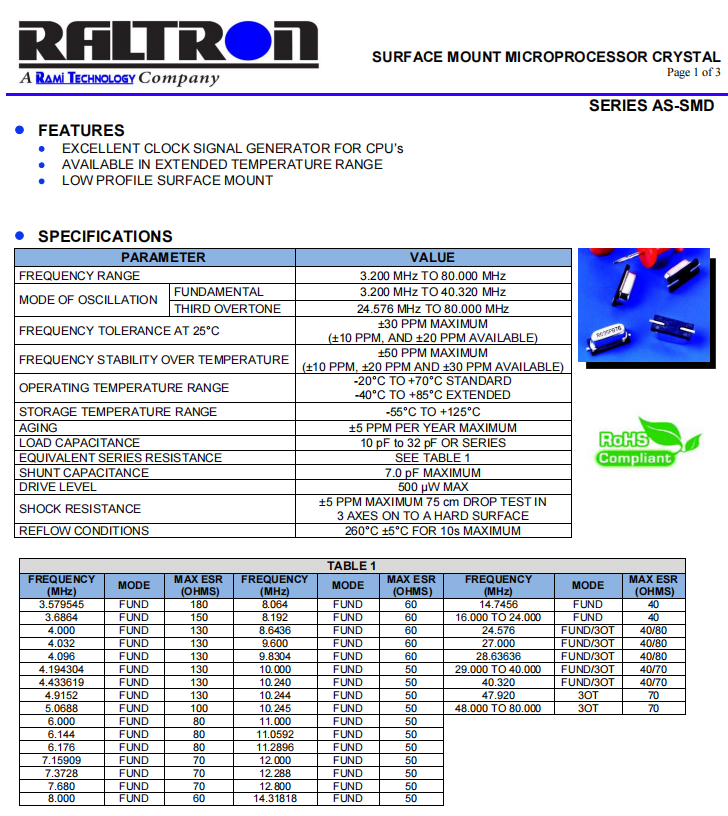

AS-8.000-30-3030-SMD-TR,8.000MHz,Raltron晶振,30pf,參數圖
規格參數 數值
頻率 8MHz
頻率公差 (at +25°C) ± 30PPM
 溫度范圍內的頻率穩定性 ± 30PPM
工作溫度 -20°C to +70°C
保存溫度   -55°C to +125°C
老化 ±5ppm Max/year
  并聯電容 (C0) 7 pF
負載電容 (CL) 30 pF
激勵功率 500  μW Max
等效串聯電阻(ESR) 60 Ω
抗沖擊性能  ±5 PPM MAXIMUM 75 cm DROP TEST IN
3 AXES ON TO A HARD SURFACE
回流焊條件  260°C ±5°C FOR 10s MAXIMUM

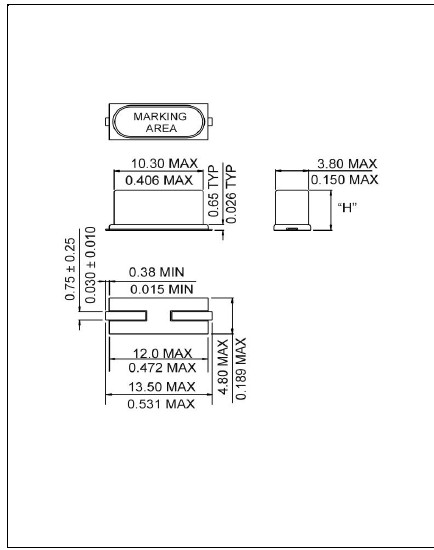

AS-8.000-30-3030-SMD-TR,8.000MHz,Raltron晶振,30pf 尺寸圖
Raltron原廠編碼 型號 頻率 尺寸 頻率偏差 頻率穩定度 負載
AS-3.579545-18-SMD-TR AS-SMD 3.579545MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-4.000-18-SMD-TR AS-SMD 4.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-4.9152-18-EXT-SMD-TR AS-SMD 4.9152MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-5.000-18-EXT-SMD-TR AS-SMD 5.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-6.000-12-2020-EXT-SMD-TR AS-SMD 6.000MHz 13.50 x 4.80mm ± 20 ppm ± 20 ppm 12 pF
AS-7.3728-20-EXT-SMD-TR AS-SMD 7.3728MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-7.3728-18-SMD-TR AS-SMD 7.3728MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-8.000-20-SMD-TR AS-SMD 8.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-8.000-18-SMD-TR AS-SMD 8.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-8.000-30-3030-SMD-TR AS-SMD 8.000MHz 13.50 x 4.80mm ± 30 ppm ± 30 ppm 30 pF
AS-9.8304-18-SMD-TR AS-SMD 9.8304MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-10.000-20-3030-SMD-TR AS-SMD 10.000MHz 13.50 x 4.80mm ± 30 ppm ± 30 ppm 20 pF
AS-11.0592-18-SMD-TR AS-SMD 11.0592MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-12.000-18-SMD-TR AS-SMD 12.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-13.560-20-SMD-TR AS-SMD 13.560MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-14.31818-20-SMD-TR AS-SMD 14.31818MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-14.7456-20-SMD-TR AS-SMD 14.7456MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-14.7456-18-EXT-SMD-TR AS-SMD 14.7456MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-16.000-18-SMD-TR AS-SMD 16.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-16.000-20-SMD-TR AS-SMD 16.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-18.432-20-SMD-TR AS-SMD 18.432MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-18.432-18-SMD-TR AS-SMD 18.432MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-19.6608-20-SMD-TR AS-SMD 19.6608MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-20.000-16-SMD-TR AS-SMD 20.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 16 pF
AS-20.000-20-SMD-TR AS-SMD 20.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-24.000-18-SMD-TR AS-SMD 24.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-24.576-18-F-SMD-TR AS-SMD 24.576MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-25.000-18-F-SMD-TR AS-SMD 25.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
AS-26.000-20-F-SMD-TR AS-SMD 26.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 20 pF
AS-27.000-20-F-3030-SMD-TR AS-SMD 27.000MHz 13.50 x 4.80mm ± 30 ppm ± 30 ppm 20 pF
AS-30.000-10-F-2020-EXT-SMD-TR AS-SMD 30.000MHz 13.50 x 4.80mm ± 20 ppm ± 20 ppm 10 pF
AS-30.000-10-F-2020-EXT-SMD-TR AS-SMD 32.000MHz 13.50 x 4.80mm ± 10 ppm ± 20 ppm 10 pF
AS-40.000-18-F-EXT-SMD-TR AS-SMD 40.000MHz 13.50 x 4.80mm ± 30 ppm ± 50 ppm 18 pF
