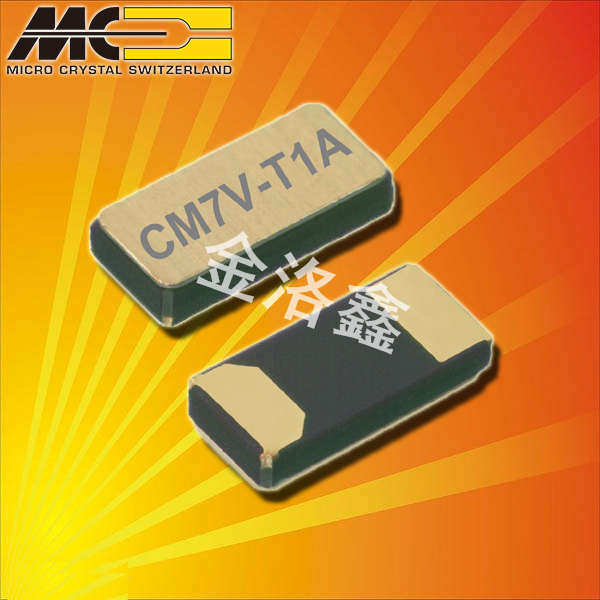

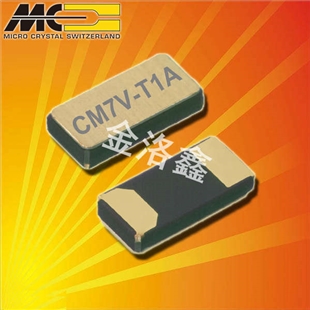

    CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC|瑞士微晶晶振|3215mm貼片晶振

  • 規格型號：24766745
  • 頻率：32.768KHz
  • 尺寸：3.2×1.5mm
  • PDF
  • 產品描述：瑞士微晶晶振,CM7V-T1A無源晶振,CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC晶振,3215mm晶振,石英貼片晶振,小體積晶振,32.768KHZ晶振,負載12.5pf,工作溫度-40~85°C,可穿戴設備晶振,便攜式設備晶振,物聯網晶振,車載晶振,衛...



CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC|瑞士微晶晶振|3215mm貼片晶振,瑞士微晶晶振,CM7V-T1A無源晶振,CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC晶振,3215mm晶振,石英貼片晶振,小體積晶振,32.768KHZ晶振,負載12.5pf,工作溫度-40~85°C,可穿戴設備晶振,便攜式設備晶振,物聯網晶振,車載晶振,衛生保健應用晶振,工業設備晶振.
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC|瑞士微晶晶振|3215mm貼片晶振 特點：
1.CM7V-T1A是一種低頻SMT石英晶體單元結合了一個音叉石英晶體諧振器,它在真空環境下工作,采用密封陶瓷包裝與陶瓷蓋
2.高穩定性,低老化,密封保證,適用于惡劣環境的成熟產品
3.卓越的密封與金-錫預制,100%不含鉛,符合rohs標準
4.高抗沖擊和抗振動,可擴展工作溫度范圍
5.小尺寸,低輪廓,重量輕(12.5毫克),具備AEC-Q200汽車資質

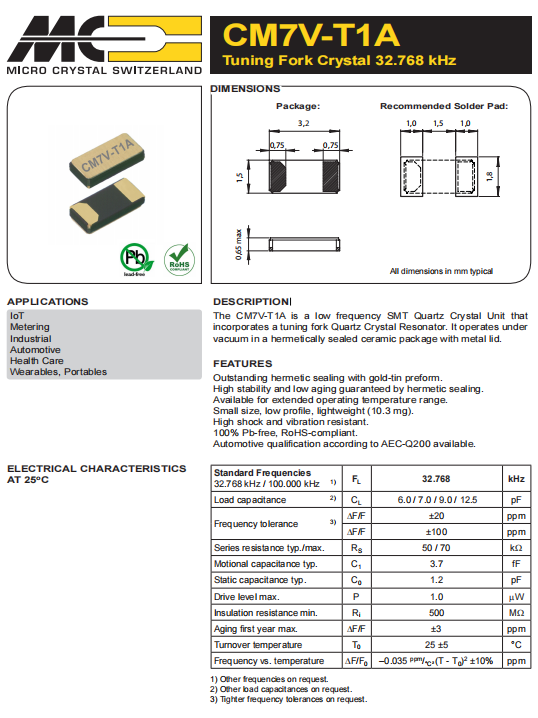

CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC|瑞士微晶晶振|3215mm貼片晶振,參數圖

參數 符號 CM7V-T1A
頻率 FL 32.768KHz
負載 CL 12.5pf
頻率公差  ΔF/F 20ppm
最大驅動電平 P 1.0μW
最小絕緣電阻 Ri 500M Ω
首年最大老化 ΔF/F ±3ppm
串聯電阻typ/max RS 50 / 70KΩ
工作溫度 TOPR  -40 to +85°C
保存溫度 TSTR –55 to +125°C

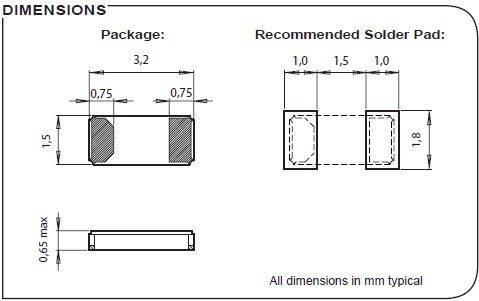

CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC|瑞士微晶晶振|3215mm貼片晶振 尺寸圖

制造商零件編號 制造商 描述
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro 晶振 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro 晶振 晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro 晶振 晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro 晶振 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA Micro 晶振 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C
CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+125C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA Micro 晶振 晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC Micro 晶振 晶體 32.768 kHz 12.5 pF 100 PPM -40/+125C
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CM7V-T1A-32.768k-6pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
