首頁進口晶振進口京瓷晶體KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振

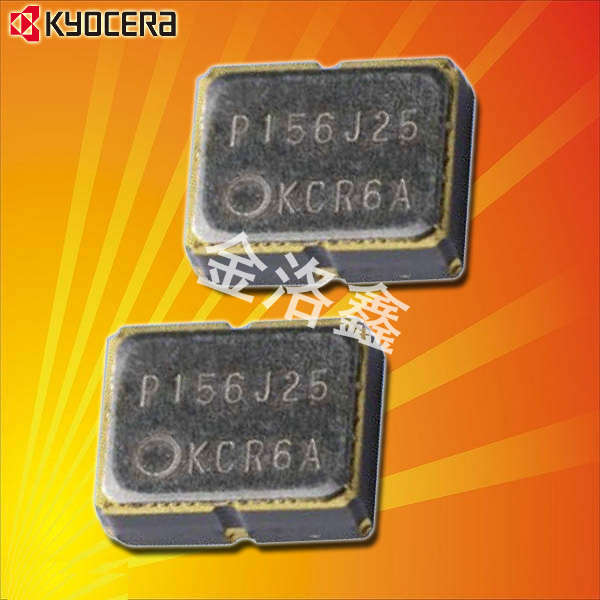

KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振

規格型號：66288208
頻率：120MHz
尺寸：3.2×2.5mm
PDF
產品描述：日本京瓷晶振,進口貼片晶振,KC3225L-P3有源晶振,石英晶體振蕩器,KC3225L120.000P3FJ00晶振,頻率120MHz,電壓3.3V,頻率穩定性100ppm,工作溫度-40~85°C,LV-PECL差分晶振,6G模塊晶振,網絡終端設備晶振,電信交換機晶振,移...

KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振,日本京瓷晶振,進口貼片晶振,KC3225L-P3有源晶振,石英晶體振蕩器,KC3225L120.000P3FJ00晶振,頻率120MHz,電壓3.3V,頻率穩定性100ppm,工作溫度-40~85°C,LV-PECL差分晶振,6G模塊晶振,網絡終端設備晶振,電信交換機晶振,移動通信設備晶振,數碼相機晶振.
KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振特點：
●小型陶瓷封裝類型
●采用縫隙封裝的高可靠性
●LV-PECL輸出
●電源電壓VCC=3.3V
●可支持±25×10 - 6

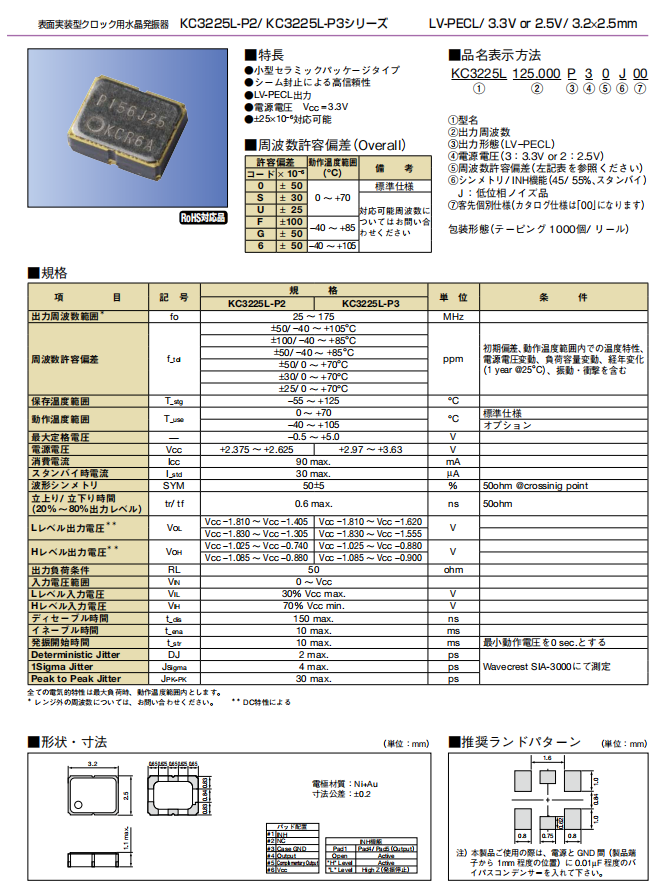

KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振,參數圖

項目	符號	規格說明	條件
額定頻率	f_nom	120MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	3.3V
儲存溫度	T_stg	-55℃~+125℃	裸存
工作溫度	T_use	-40℃~ +85℃
頻率公差（標準）	f_tol	±100 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電流消耗	ICC	90mA Max
待機電流	I_std	30μA Max
對稱性（占空比）	SYM	50±5%	100ohm @crossing point
低位準輸出電壓	VOH	VCC −1.025 ~VCC −0.880
高位準輸出電壓	VOL	VCC −1.810 ~VCC −1.620
輸出負載	RL	50Ω	LV-PECL Output
輸入電壓	VIH	70%Vcc Min	OE terminal
輸入電壓	VIL	30%Vcc Max	OE terminal
上升下降時間	tr/tf	0.6ns Max	100ohm
起始時間	t str	10ms Max	@Minimum operating voltage to be 0 sec
確定性抖動	DJ	2ps Max	Measured with Wavecrest SIA-3000
1 Sigma 抖動	JSigma	4ps Max
峰對峰抖動	JPK-PK	30ps Max

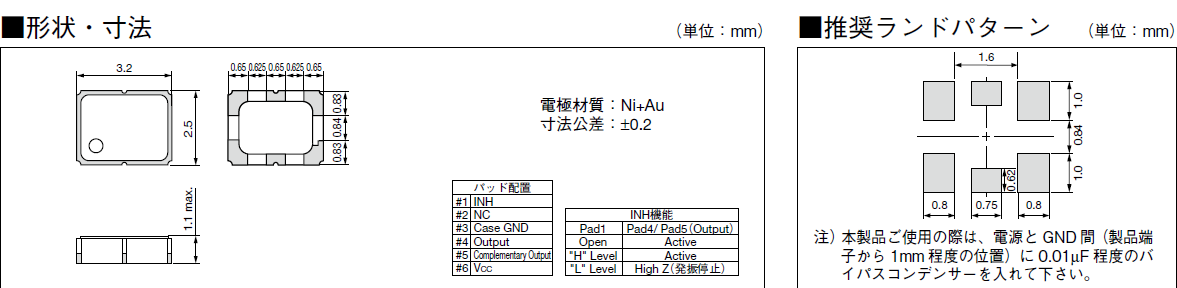

KC3225L120.000P3FJ00-120MHz差分晶振-6G模塊晶振 尺寸圖
