首頁進口晶振愛普生晶振X1M0002010004|156.25MHz|LV-PECL差分晶振|5032mm

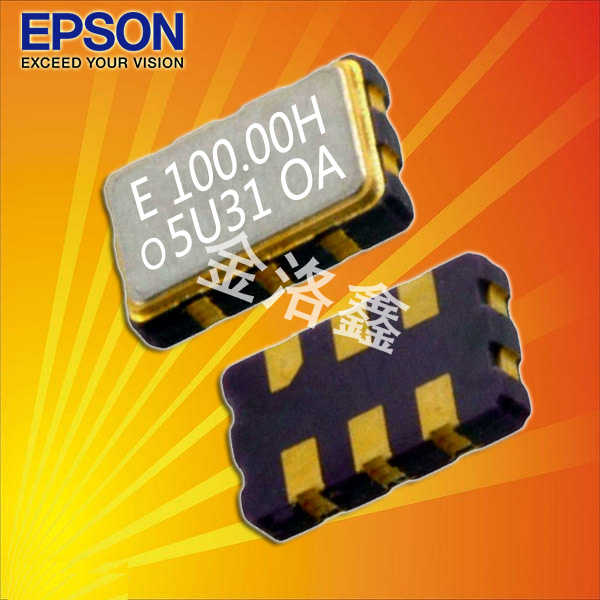

    X1M0002010004|156.25MHz|LV-PECL差分晶振|5032mm

  • 規格型號：14593580
  • 頻率：156.25MHz
  • 尺寸：5.0×3.2×1.4mm
  • PDF
  • 產品描述：日本愛普生晶振,進口晶體振蕩器,LV-PECL差分晶振,EG-2102CB有源晶振,X1M0002010004晶振,頻率156.25MHz,電壓3.3V,工作溫度0~70°C,尺寸5032mm,六腳石英SMD晶振,智能手機晶振,藍牙模塊晶振,可視智能家居晶振,網絡終端晶...


X1M0002010004|156.25MHz|LV-PECL差分晶振|5032mm,日本愛普生晶振,進口晶體振蕩器,LV-PECL差分晶振,EG-2102CB有源晶振,X1M0002010004晶振,頻率156.25MHz,電壓3.3V,工作溫度0~70°C,頻率容差50ppm,尺寸5032mm,六腳石英SMD晶振,智能手機晶振,藍牙模塊晶振,可視智能家居晶振,網絡終端晶振,智能家用電器晶振.

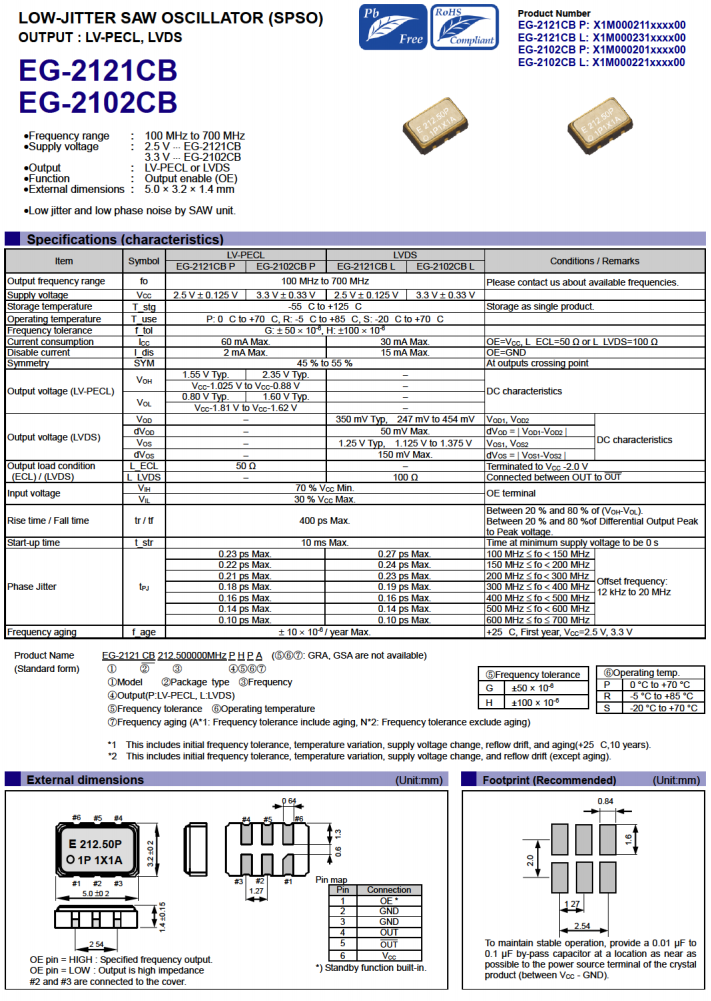

X1M0002010004|156.25MHz|LV-PECL差分晶振|5032mm,參數圖
項目 符號 規格說明 條件
額定頻率 f_nom 156.25MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 Vcc 3.3V±0.3V
儲存溫度 T_stg -40℃~+125℃ 裸存
工作溫度 T_use 0℃~ +70℃
頻率公差（標準） f_tol ±50 ppm +25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電流消耗 f_tem 60mA Max OE=Vcc,L ECL=50Ω or LVDS=100Ω
禁用電流 I_dis 2mA Max OE=GND
對稱性（占空比） SYM 45%~55% 在輸出交叉點
輸出電壓（LV-PECL) VOH 2.35V Typ DC charactenistics
VOL 1.60V Typ
輸出負載條件 L _ECL 50Ω Terminated to GND
輸入電壓 VIH 70%Vcc Min OE terminal
VIL 30%Vcc Max
上升下降時間 tr/tf 400ps Max Between 20% and 80% of (VOH+VOL)
起始時間 t str 10ms Max Time at minimum supply voltage to be 0
相位抖動 tpj 0.22ps Max 150MHz≤fo<200MHz
老化 f_aging ±10ppm/year +25℃,第一年，Vcc=2.5V,3.3V

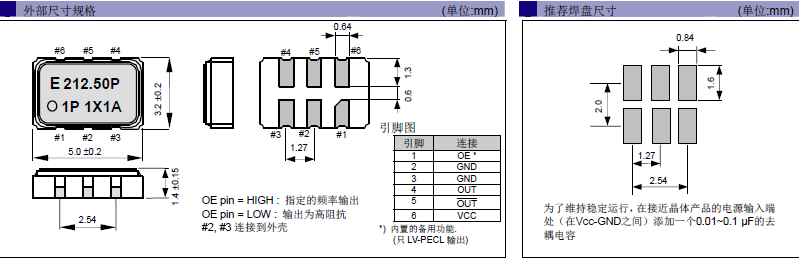

X1M0002010004|156.25MHz|LV-PECL差分晶振|5032mm 尺寸圖

編碼 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1M0000910001 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910002 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910003 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910004 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V -5 to 85 °C
X1M0000910005 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V -20 to 70 °C
X1M0000910006 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910007 EG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V -5 to 85 °C
X1M0000910008 EG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910009 EG-2102CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V 0 to 70 °C
X1M0000910010 EG-2102CA 322.265625 MHz 7.00 x 5.00 x 1.20 mm HCSL 3.000 to 3.600 V -5 to 85 °C
X1M0001010002 EG-2121CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm HCSL 2.375 to 2.625 V 0 to 70 °C
X1M0002010001 EG-2102CB 133.330000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010002 EG-2102CB 150.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010003 EG-2102CB 133.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010004 EG-2102CB 156.250000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010005 EG-2102CB 212.500000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0002010006 EG-2102CB 644.531300 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010007 EG-2102CB 625.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0002010008 EG-2102CB 100.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0002010009 EG-2102CB 150.000000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0002010010 EG-2102CB 106.250000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0002110001 EG-2121CB 156.250000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0002110002 EG-2121CB 212.500000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.375 to 2.625 V -20 to 70 °C
X1M0002110003 EG-2121CB 156.250000 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.375 to 2.625 V -20 to 70 °C
X1M0002110004 EG-2121CB 322.265625 MHz 5.00 x 3.20 x 1.40 mm LV-PECL 2.375 to 2.625 V -20 to 70 °C
X1M0002210002 EG-2102CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0002210003 EG-2102CB 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0002210004 EG-2102CB 266.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210005 EG-2102CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210006 EG-2102CB 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210007 EG-2102CB 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0002210008 EG-2102CB 148.351648 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0002210009 EG-2102CB 148.350000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210010 EG-2102CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210011 EG-2102CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0002310002 EG-2121CB 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310003 EG-2121CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310004 EG-2121CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310005 EG-2121CB 402.832000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310006 EG-2121CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0002310007 EG-2121CB 133.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310010 EG-2121CB 500.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310011 EG-2121CB 402.832031 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310013 EG-2121CB 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0002310014 EG-2121CB 441.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310015 EG-2121CB 625.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0002310016 EG-2121CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0002310017 EG-2121CB 644.531250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310018 EG-2121CB 322.265625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310019 EG-2121CB 233.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310020 EG-2121CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310021 EG-2121CB 644.531250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
