ECS-98.3-20-20BM-TR|7050mm|98.3MHz|-10~70°C|20pf,ECS-98.3-20-20BM-TR晶振,7050mm晶振,頻率98.3MHz,工作溫度-10~70°C,負載20pf,ECS歐美晶振,美國進口晶振,CSM-8M石英晶體諧振器,四腳貼片晶振,傳真調制解調器卡晶振,PCMIA以太網晶振,通訊設備晶振,智能家居晶振.

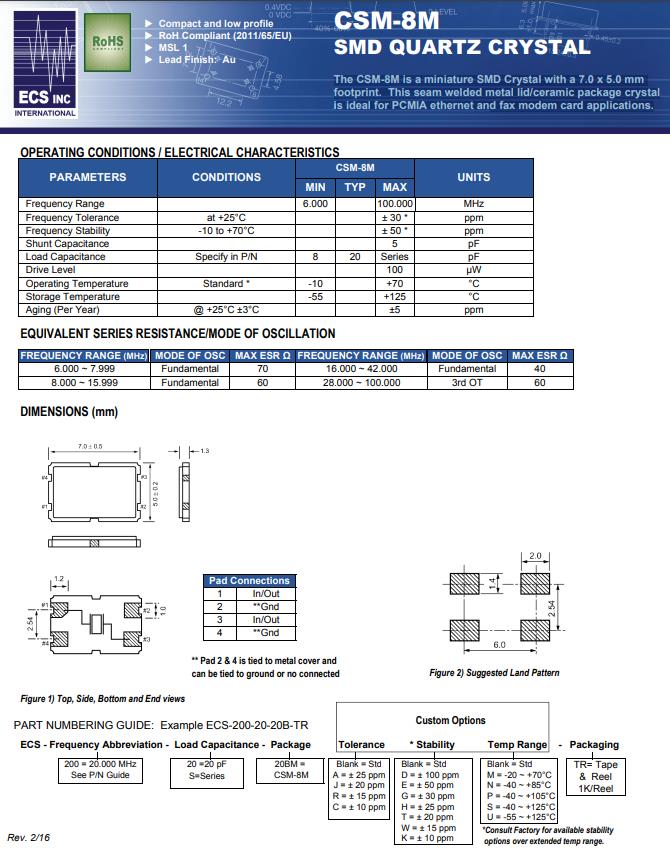

ECS-98.3-20-20BM-TR|7050mm|98.3MHz|-10~70°C|20pf,參數圖

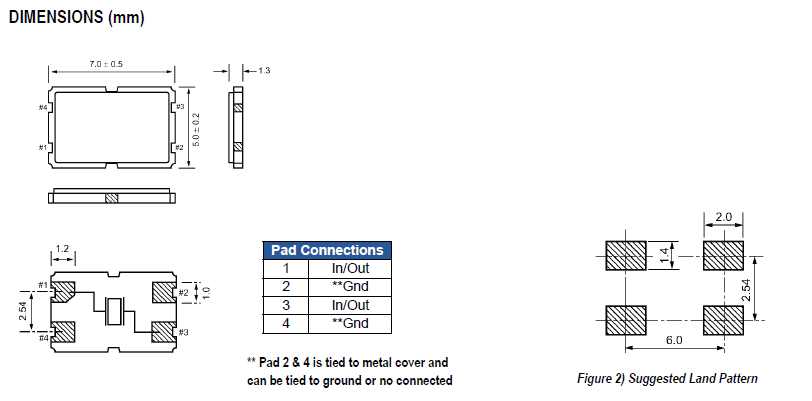

ECS-98.3-20-20BM-TR|7050mm|98.3MHz|-10~70°C|20pf 尺寸圖

ECS原廠編碼	型號	頻率	頻率穩定度	頻率偏差	負載電容
ECS-120-20-20BM-TR	CSM-8M	12MHz	±50ppm	±30ppm	20pF
ECS-13.5-20-20BM-TR	CSM-8M	13.5MHz	±50ppm	±30ppm	20pF
ECS-240-20-20BM-TR	CSM-8M	24MHz	±50ppm	±30ppm	20pF
ECS-160-20-20BM-TR	CSM-8M	16MHz	±50ppm	±30ppm	20pF
ECS-180-20-20BM-TR	CSM-8M	18MHz	±50ppm	±30ppm	20pF
ECS-190-20-20BM-TR	CSM-8M	19MHz	±50ppm	±30ppm	20pF
ECS-200-20-20BM-TR	CSM-8M	20MHz	±50ppm	±30ppm	20pF
ECS-210-20-20BM-TR	CSM-8M	21MHz	±50ppm	±30ppm	20pF
ECS-220-20-20BM-TR	CSM-8M	22MHz	±50ppm	±30ppm	20pF
ECS-230-20-20BM-TR	CSM-8M	23MHz	±50ppm	±30ppm	20pF
ECS-240-20-20BM-TR	CSM-8M	24MHz	±50ppm	±30ppm	20pF
ECS-250-20-20BM-TR	CSM-8M	25MHz	±50ppm	±30ppm	20pF
ECS-260-20-20BM-TR	CSM-8M	26MHz	±50ppm	±30ppm	20pF
ECS-270-20-20BM-TR	CSM-8M	27MHz	±50ppm	±30ppm	20pF
ECS-280-20-20BM-TR	CSM-8M	28MHz	±50ppm	±30ppm	20pF
ECS-290-20-20BM-TR	CSM-8M	29MHz	±50ppm	±30ppm	20pF
ECS-330-20-20BM-TR	CSM-8M	33MHz	±50ppm	±30ppm	20pF
ECS-300-20-20BM-TR	CSM-8M	30MHz	±50ppm	±30ppm	20pF
ECS-320-20-20BM-TR	CSM-8M	32MHz	±50ppm	±30ppm	20pF
ECS-480-20-20BM-TR	CSM-8M	48MHz	±50ppm	±30ppm	20pF
ECS-38.4-20-20BM-TR	CSM-8M	38.4MHz	±50ppm	±30ppm	20pF
ECS-19.68-20-20BM-TR	CSM-8M	19.68MHz	±50ppm	±30ppm	20pF
ECS-40.32-20-20BM-TR	CSM-8M	40.32MHz	±50ppm	±30ppm	20pF
ECS-440-20-20BM-TR	CSM-8M	44MHz	±50ppm	±30ppm	20pF
ECS-400-20-20BM-TR	CSM-8M	40MHz	±50ppm	±30ppm	20pF
ECS-61.5-20-20BM-TR	CSM-8M	61.5MHz	±50ppm	±30ppm	20pF
ECS-98.3-20-20BM-TR	CSM-8M	98.3MHz	±50ppm	±30ppm	20pF
